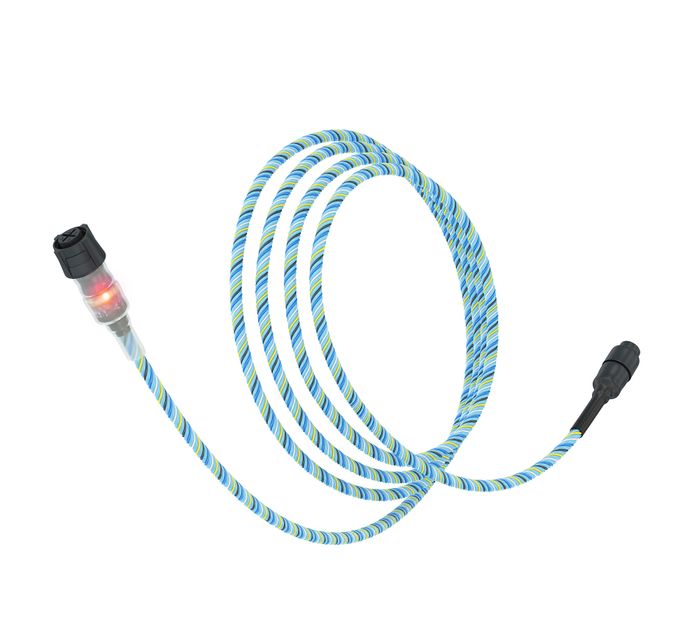

Digital Water and Base Sense Cable FG-EC
Available in standard and pre-connected lengths of 3, 7 and 15 metres. They can be interconnected to provide an expandable network of leak detection.
The cable contains an embedded microprocessor, it intelligently monitors the cable status, it provides continuous real-time communication to the TTK digital units.
Each cable has a high visibility LED to provide quick green/red identification of the cable status:
Green LED: normal status, no alarm raised;
Red LED: leak detection on the cable;
LED off: cable break on this or any upstream cable.
Small diameter, light, flexible and in an easily identifiable light blue colour.
Ingenious design: four conducted wires of helical construction, compressed and connected on an extruded central core, insensitive to dust and metal particles contamination, preventing false alarms.
Fixing clips are available to fasten the sense cables.
A set of TTK BUS 8723 jumper cables and connection accessories gives continuity to each circuit.
Detects and pin-points the location of a water/base leak to the nearest metre along the length of the cable.
Detects and localizes cable break on the cable.
Manufactured with the low smoke zero halogen (LSZH or LS0H) materials, FG-EC cable emits, when burned, a less optically dense smoke that releases at a lower rate than a non-LSZH cable.
Short drying time.
The FG-EC sense cable is a non-absorbent design that can be reused after leaks, reducing maintenance costs.
Easy installation with pre-finished male and female connectors.
Flexible design: in both liner and sector mode (via FG-DTC box).
The typical applications are data centres, trading floors, high value and mission-critical infrastructure.
